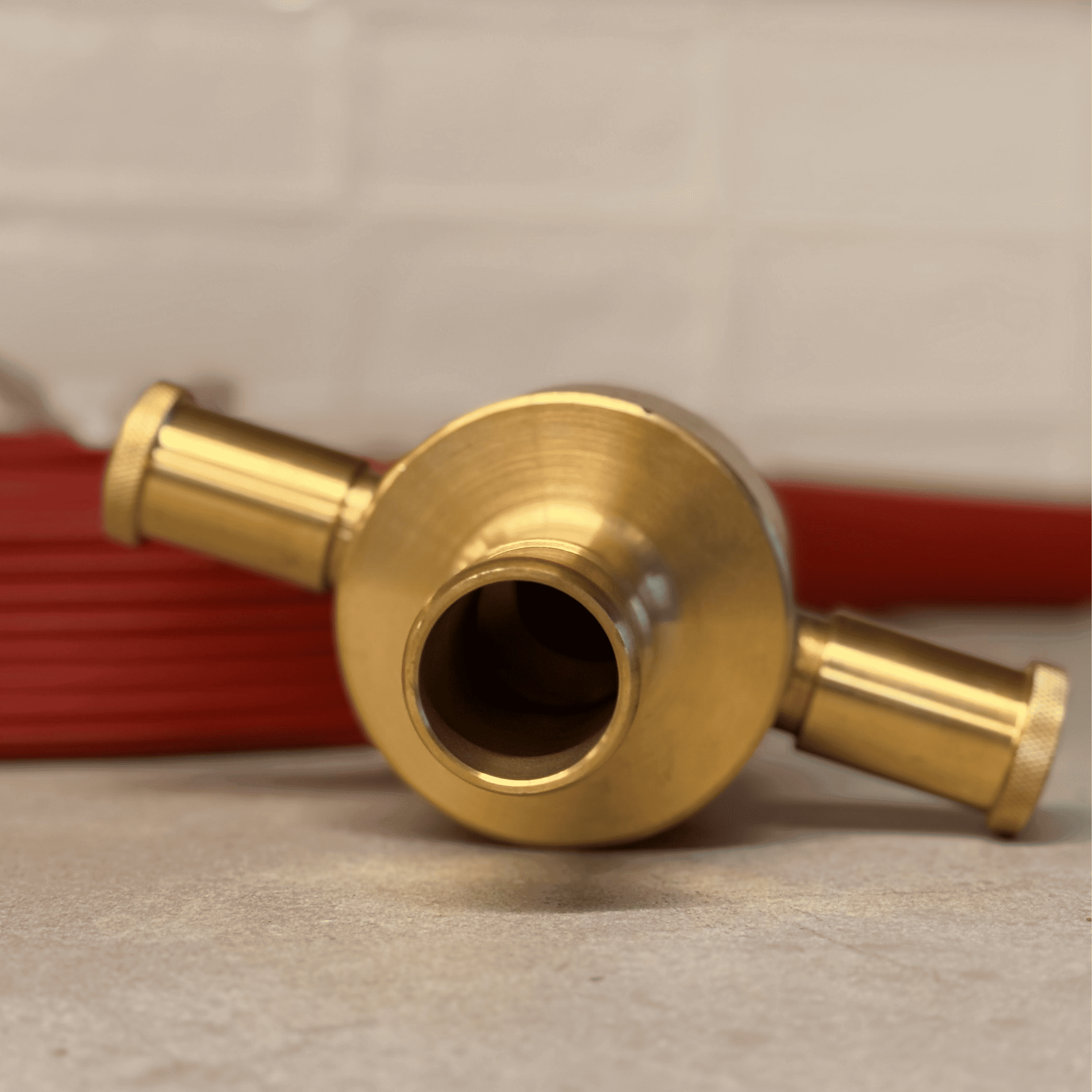

Standard Hose Connector

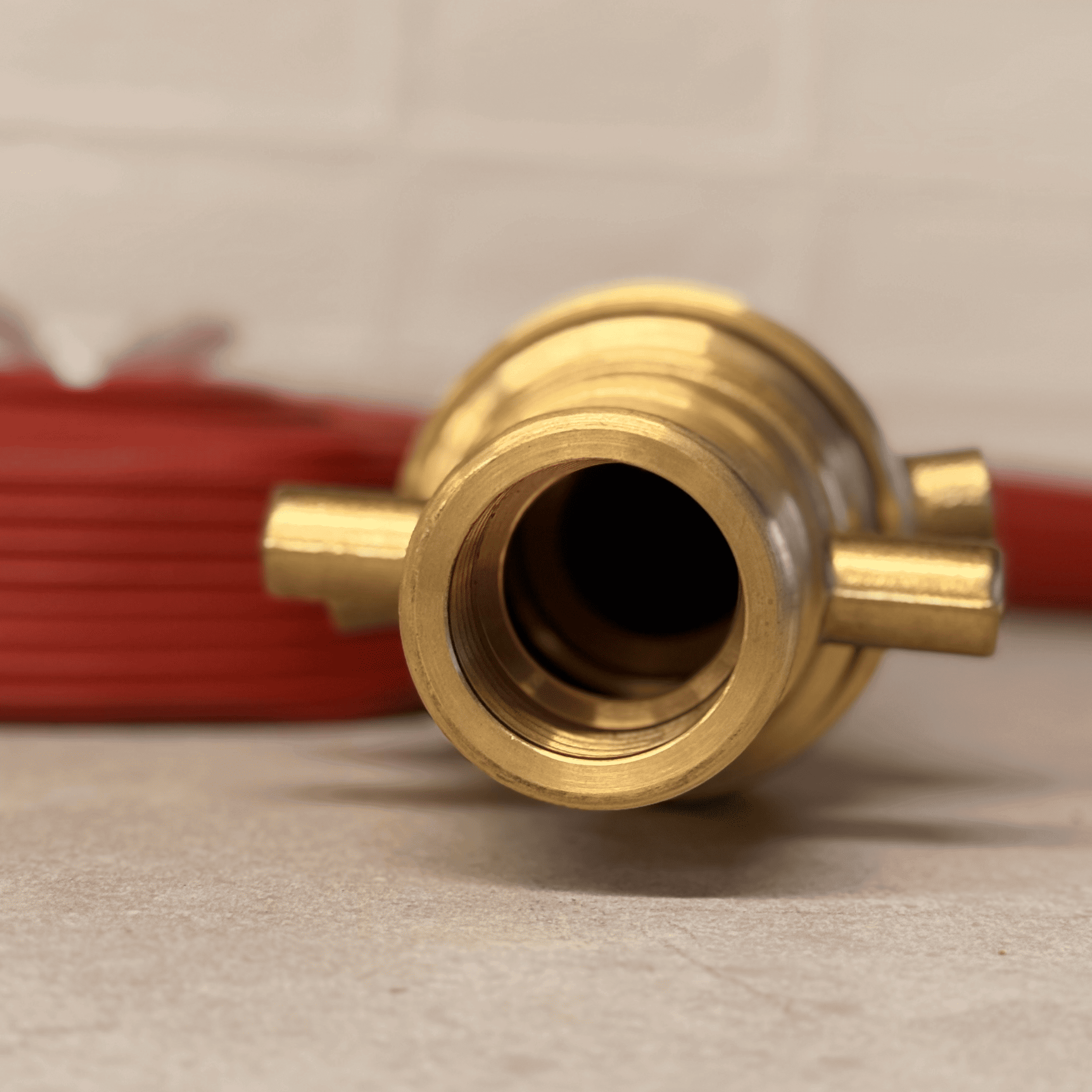

AHVISS Hose Connector
AHVISS replaces traditional coupling methods with a precision internal swagging mechanism — no restrictions inside the hose, no injury risks from clamps, and more flow to where it counts.
Full-bore flow path across all sizes (25–64mm). No internal obstructions. More water to the fire, faster.
No Band-It clamps or wire binding. Clean swaged finish with no sharp edges or pinch points in the field.
Direct replacement for standard connections on AS2792 Layflat Fire Hose. No infrastructure changes required.
Less resistance means pumps work less hard — extending equipment life and cutting maintenance costs.
Independently tested to 809kg (38mm) and 2,247kg (64mm) by Absolute Lifting & Safety, Feb 2021.
Consistent swagged join that passes visual inspections and meets HSEC audit documentation requirements.
Higher flow means faster response. Ideal for fixed and mobile suppression across open-cut and underground operations.
Third-party load test certificates supplied. Meets mine safety management systems and HSEC audit requirements.
No wire binding or clamps means crews can handle, deploy, and recover hose without cut or crush risk on site.
We work with procurement teams on bulk orders, lead times, and delivery logistics across Queensland.
Certs ALS196079 (38mm) & ALS196080 (64mm) · AS2792 Compliant
Unlike traditional couplings that insert inside the hose bore and restrict flow, AHVISS swages around the hose from the outside — keeping the full bore completely open.
AS2792 Layflat fire hose is cut to length and prepared to AHVISS specification. No special tooling required on site.
QRT or Storz coupling positioned at the hose end. No insert pushed inside the bore — full internal diameter maintained.
The system compresses and swages the connection, creating a secure mechanical bond with a clean, professional finish.
Ready for deployment — no restrictions, no sharp edges, independently tested to specified pull-out force ratings.
Talk to our team about AHVISS for your mine site, civil project, or fire appliance fleet.
We supply across Queensland and can assist with bulk orders.
