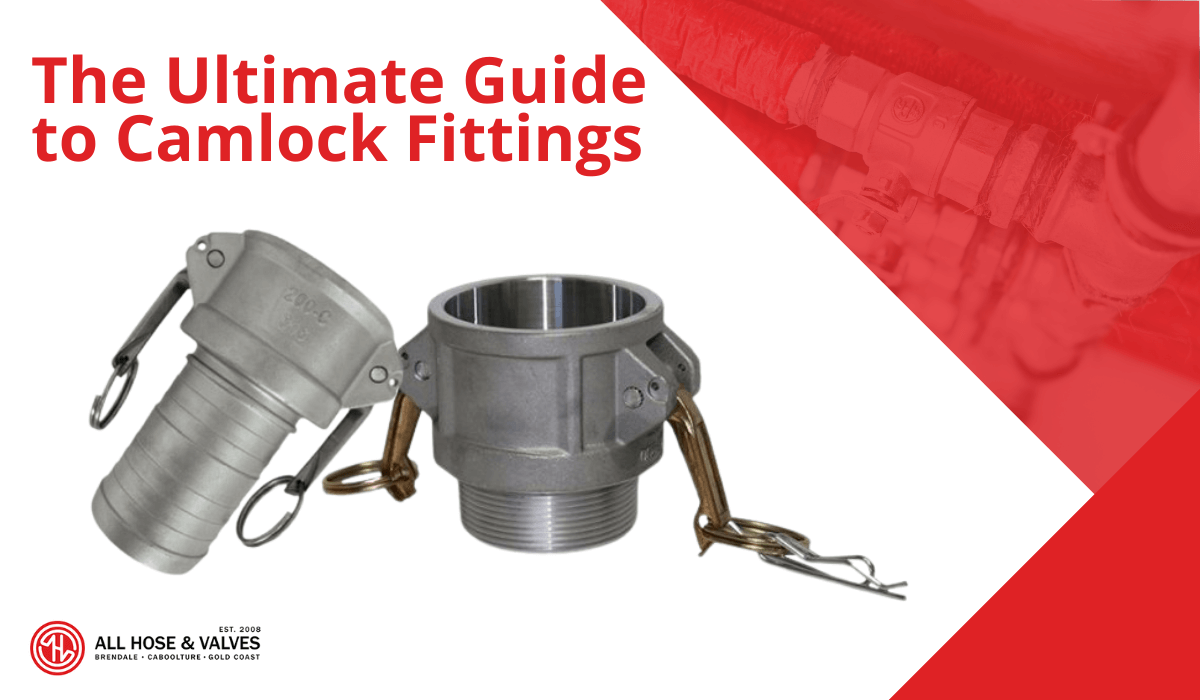

Camlock fittings, also known as cam and groove couplings, are a vital component in the efficient transfer of liquids and powders in numerous industrial settings. These fittings are renowned for their ease of use, allowing for quick connect and disconnect without the need for complex tools or specialized labour. This article delves into the world of Camlock Fittings, exploring their uses, the different types available, and the considerations one must take into account when selecting the right fitting for a specific application.
What Are Camlock Fittings?
Camlock fittings are a standardized form of hose and pipe connector. They consist of a male (adapter/plug) and a female (coupler/socket) end that lock together with a simple lever operation. This simplicity in design eliminates the need for threading, bolting, or screwing on the hose connections, making them a popular choice in industries where hoses need to be connected and disconnected frequently and rapidly.
How Do Camlock Fittings Work?
Camlock fittings work by employing a male/female coupling system, allowing for a quick and secure connection without the need for threading. By simply inserting the male adapter into the female coupler and snapping the cam levers shut, a leak-proof seal is formed, facilitating the safe and efficient transport of a wide range of materials. Their threadless design and ease of operation have made them a staple in industries worldwide for rapid and reliable connections.
Image credit: Tameson
Applications of Camlock Fittings
Camlock fittings are used across a wide array of industries due to their versatility. They are commonly found in sectors such as manufacturing, agriculture, oil and gas, and in the chemical and pharmaceutical fields. The quick connect and disconnect capability makes them particularly useful in applications where hoses are changed frequently or where speed and efficiency are of the essence.
For those in the marine and recreational vehicle industries, camlock fittings are an integral part of water and waste management systems. Our Marine & RV Plumbing solutions offer a variety of fittings that ensure reliability and ease of use in these applications.
In the realm of agriculture, camlock fittings streamline the irrigation processes and facilitate the efficient use of water resources. To support the robust needs of excavation and agricultural machinery, explore our dedicated fittings that can withstand the demands of such heavy-duty applications at our Excavation & Agricultural Machinery section.
Different Types of Camlock Fittings
Different Camlock Fitting Materials
Materials play a pivotal role in the functionality and suitability of camlock fittings for specific environments and substances. Here’s a breakdown of the most common materials used:
- Aluminium Camlock Fittings: These are valued for their light weight and good corrosion resistance, making them suitable for a variety of applications, including handling water and petroleum products. Our Aluminium Camlock Fittings offer a selection of sizes and types to meet diverse needs.
- Stainless Steel Camlock Fittings: With excellent strength and resistance to both corrosion and high temperatures, stainless steel camlocks are the go-to for demanding environments, particularly in the food, chemical, and pharmaceutical industries. Our collection of Stainless Steel Camlock Fittings provides high-quality options for these critical applications.
- Brass Camlock Fittings: Brass is often chosen for its durability and corrosion resistance, making it a good fit for water, hydraulic oil, coolants, and gasoline applications.
- Poly Camlock Fittings: Constructed from polypropylene, these fittings are commonly used in agriculture and for water transport due to their chemical resistance and cost-effectiveness. Check out our variety of Poly Camlock Fittings for applications requiring these properties.
Comparison Table: Different Types of Camlock Coupling Materials
|Material||Weight||Corrosion Resistance||Temperature Resistance||Common Applications||Product Link|
|Aluminium||Light||Good||Moderate||Water, Petroleum Products||Aluminium Camlock Fittings|
|Stainless Steel||Heavy||Excellent||High||Food, Chemical, Pharma||Stainless Steel Camlock Fittings|
|Brass||Moderate||Good||Moderate||Water, Oils, Coolants|
|Polypropylene||Very Light||Good||Low||Agriculture, Water Transport||Poly Camlock Fittings|

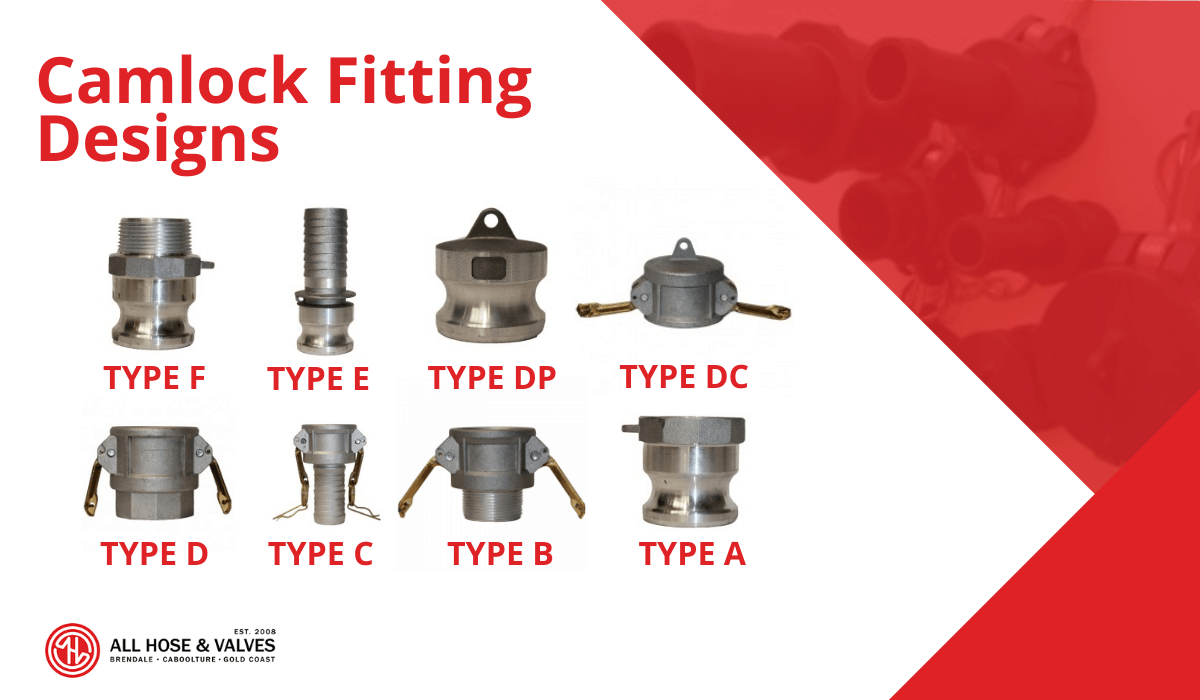

Camlock Fitting Designs
Camlock fittings come in several design configurations, each identified by a letter designation (A through F, DC, DP) to facilitate easy identification and application matching:
- Type A: Male adapter with a female thread.
- Type B: Female coupler with a male thread.
- Type C: Hose shank (barbed) with a female coupler.
- Type D: Female coupler with a female thread.
- Type E: Male adapter with a hose shank.
- Type F: Male coupler with a male thread.
- Type DC: Dust cap used to cover adapters.
- Type DP: Dust plug used to plug couplers.
Camlock Fitting Sizes
Choosing the correct size of Camlock fitting is crucial for ensuring a secure connection and optimal performance. Here’s a guide to the sizes available and their typical use cases:
- Sizes Range: Camlock fittings are available from ½ inch up to 6 inches for materials like Aluminum, Brass, and Stainless Steel. Polypropylene Camlocks are supplied in sizes from ½ inch up to 4 inches. The size needed typically corresponds to the internal diameter of the hose or pipe they are connecting to.
- Handles for Smaller Sizes: All ½ inch Camlock fittings come standard with two handles for improved performance, ensuring a more secure and manageable connection.
- Operating Pressure: The standard operating pressure for Camlock couplers is 150 psi for most sizes, which is suitable for a wide range of applications. However, it’s important to consult the specifications for each size and material to ensure they meet the requirements of the system’s pressure.
- Thread Types: Camlock fittings are designed with National Pipe Threads (NPT) to ensure a tight seal when threaded onto a pipe. Hose barb ends are also available for a direct fit into a hose, providing versatility for different types of connections.
- Special Types and Custom Sizes: In addition to the standard sizes, special types of Camlock fittings such as self-locking handles, no-thread butt weld, and socket weld, as well as flanged ends, can be manufactured or sourced to meet specific requirements. For applications that fall outside of the standard range, custom sizes and configurations can be created.
Camlock Fitting Size Guide and Specifications
|Size (Inch)||Material Options||Operating Pressure (psi)||Typical Use Cases|
|½||AL, BR, SS, PP||150||Small hoses and applications requiring two handles for better performance|
|¾||AL, BR, SS||150||General-purpose applications, light transfer of liquids|
|1||AL, BR, SS, PP||150||Water transfer, agricultural applications|
|1 ¼||AL, BR, SS||150||Medium flow rates, various industrial applications|
|1 ½||AL, BR, SS||150||Food industry, chemical transfer|
|2||AL, BR, SS, PP||150||Oil and petroleum products, larger volume transfer|
|3||AL, BR, SS||150||High-volume water transfer, bulk handling|
|4||AL, BR, SS, PP||150||Industrial applications, high-volume transfer|
|5||AL, BR, SS||150||Large diameter for substantial transfer requirements|
|6||AL, BR, SS||150||Maximum flow rates, suitable for large-scale operations|
*AL – Aluminium, BR – Brass, SS – Stainless Steel, PP – Polypropylene
How to Choose the Right Camlock Fittings
When it comes to selecting the appropriate Camlock fittings for your application, it’s essential to make an informed decision to ensure safety, efficiency, and cost-effectiveness. The industry-standard “STAMPED” method provides a comprehensive checklist to guide you through the selection process:
- S – Size: Determine the correct size of the fitting needed for your hose or pipe. This includes the inner diameter and outer diameter to ensure a proper fit and seal.
- T – Temperature: Consider the temperature range of the material being conveyed. Different materials used in Camlock fittings can withstand different temperature extremes.
- A – Application: Understand the specific application and conditions in which the fitting will be used. This includes the type of material being transferred and the environment it will be used in.
- M – Material: Choose a material that is compatible with the fluid being handled to prevent corrosion or contamination. Common materials include aluminium, stainless steel, brass, and polypropylene.
- P – Pressure: Check the pressure requirements of your system. Camlock fittings are rated for different pressures, and it’s crucial to select one that can handle the system’s maximum operating pressure.
- E – Ends or Couplings: Identify the type of connections you need. Camlock fittings come with various end connections to suit different systems, such as threaded or flanged ends.
- D – Delivery: Consider the delivery of the product, including the flow rate and any necessary features like quick disconnect for emergency shutoff.
By carefully evaluating each of these factors—Size, Temperature, Application, Material, Pressure, Ends, and Delivery—you can select the most suitable Camlock fittings for your needs. This careful consideration not only ensures the longevity and reliability of your fittings but also the safety of your operations.
Remember to consult with a specialist if you’re unsure about any of these aspects. Suppliers of industrial hoses and fittings (you know, like us!) can provide valuable advice and ensure that you get the right product for your specific requirements.
Advantages of Using Camlock Fittings
The primary advantages of using camlock fittings include their quick and easy operation, which can significantly reduce downtime and increase productivity. They are also cost-effective, as they do not require additional tools or equipment for operation, and are versatile enough to be used in a multitude of applications.
Limitations and Considerations
While camlock fittings are highly versatile, they are not suitable for all applications. They should not be used for steam or compressed air services and are generally not recommended for high-pressure applications. It’s also important to ensure that the materials of the camlock fitting are compatible with the fluids being transferred to avoid any chemical reactions or contamination.
Maintenance and Safety Tips
Proper maintenance and adherence to safety protocols are critical when using camlock fittings. Here are some key points to keep in mind:
- Regular Inspection: Periodically check your camlock fittings for signs of wear, corrosion, or damage. This includes inspecting the locking arms for proper function and the seals for any deterioration.
- Gasket Replacement: Replace gaskets regularly to ensure a tight seal and prevent leaks. Keep a supply of compatible gaskets on hand for timely maintenance.
- Correct Usage: Use camlock fittings within their designed pressure and temperature ranges. Exceeding these limits can lead to fitting failure and safety hazards.
- Depressurize Before Disconnecting: Always ensure that the system is fully depressurized before attempting to disconnect the fittings to prevent accidents.
- Secure Connections: Double-check that all connections are secure and the cam levers are properly locked in place before starting material transfer.
- Avoid Cross-Threading: When connecting threaded camlock fittings, be careful to avoid cross-threading which can damage the threads and cause leaks.
- Use Compatible Materials: Ensure that the material of the camlock fitting is compatible with the fluids being transferred to avoid chemical reactions or contamination.
- Handle with Care: Although camlock fittings are robust, they should be handled with care during connection and disconnection to prevent damage.
- Training: Ensure that all personnel who work with camlock fittings are properly trained in their use and the associated safety measures.
- Emergency Procedures: Have clear procedures in place for handling emergencies, such as accidental disconnections or leaks.
By following these maintenance and safety tips, you can help ensure the longevity of your camlock fittings and the safety of your operations.
Camlock fittings play an essential role in the efficient operation of many industrial systems. By understanding the different types, materials, and applications, users can select the right camlock fitting for their needs, ensuring safe and effective operation. With the right selection, camlock fittings can offer a reliable and cost-effective solution for quick connect and disconnect needs in a variety of industrial applications.
Explore Our Camlock Fittings Range
Ready to find the perfect camlock fitting for your project? We invite you to browse our extensive range of high-quality camlock fittings. Whether you’re looking for aluminium, stainless steel, brass, or polypropylene, we have the sizes and types to meet your needs.
Visit Us In-Store
Prefer a hands-on shopping experience? Come visit us at one of our convenient locations. Our knowledgeable staff will be happy to assist you in selecting the right camlock fittings for your application. Find your nearest store location and let us help you with all your industrial hose and fitting supply needs.
Bonus Content: FAQs About Camlock Fittings
Q: What are Camlock fittings used for?
A: Camlock fittings are used to quickly connect and disconnect hoses and pipes in various industries, including agriculture, chemical, petroleum, and water treatment, among others.
Q: Can Camlock fittings be used for all types of liquids?
A: Camlock fittings can be used for a wide range of liquids, but it’s crucial to choose the right material Camlock fitting that is compatible with the specific liquid to prevent corrosion or contamination.
Q: Are Camlock fittings suitable for high-pressure applications?
A: Camlock fittings are generally suitable for low to medium-pressure applications. It’s important to check the pressure rating of the specific Camlock fitting to ensure it meets the requirements of your system.
Q: How do I know which size Camlock fitting to use?
A: The size of the Camlock fitting should correspond to the internal diameter of the hose or pipe you are connecting. It’s essential to ensure a proper fit to prevent leaks or disconnections. Contact our team for help on your specific use case.
Q: What materials are Camlock fittings available in?
A: Camlock fittings are available in various materials, including aluminium, stainless steel, brass, and polypropylene, each suitable for different applications and fluids.
Q: How do you connect and disconnect Camlock fittings?
A: To connect, simply insert the male adapter into the female coupler and close the cam levers on the coupler. To disconnect, open the cam levers and remove the adapter.
Q: Do Camlock fittings require any tools for connection or disconnection?
A: No, one of the advantages of Camlock fittings is that they do not require any tools for connecting or disconnecting, making them quick and easy to use.
Q: How often should Camlock fittings be replaced?
A: The lifespan of a Camlock fitting depends on the usage conditions and the material. Regular inspection and maintenance can extend their life, but they should be replaced if you notice any damage or wear.
Q: Are there any safety concerns with using Camlock fittings?
A: As with any fitting, ensuring a secure connection is crucial. Always depressurize the system before disconnecting a Camlock fitting and never disconnect under pressure as it can be hazardous.
Q: Can I get custom-sized Camlock fittings?
A: Yes, some suppliers offer custom-sized Camlock fittings to meet specific requirements. Chat to our friendly team and we’ll be happy to help.
